Underwater Camera with Mounting Bracket
Computer Interface
Software

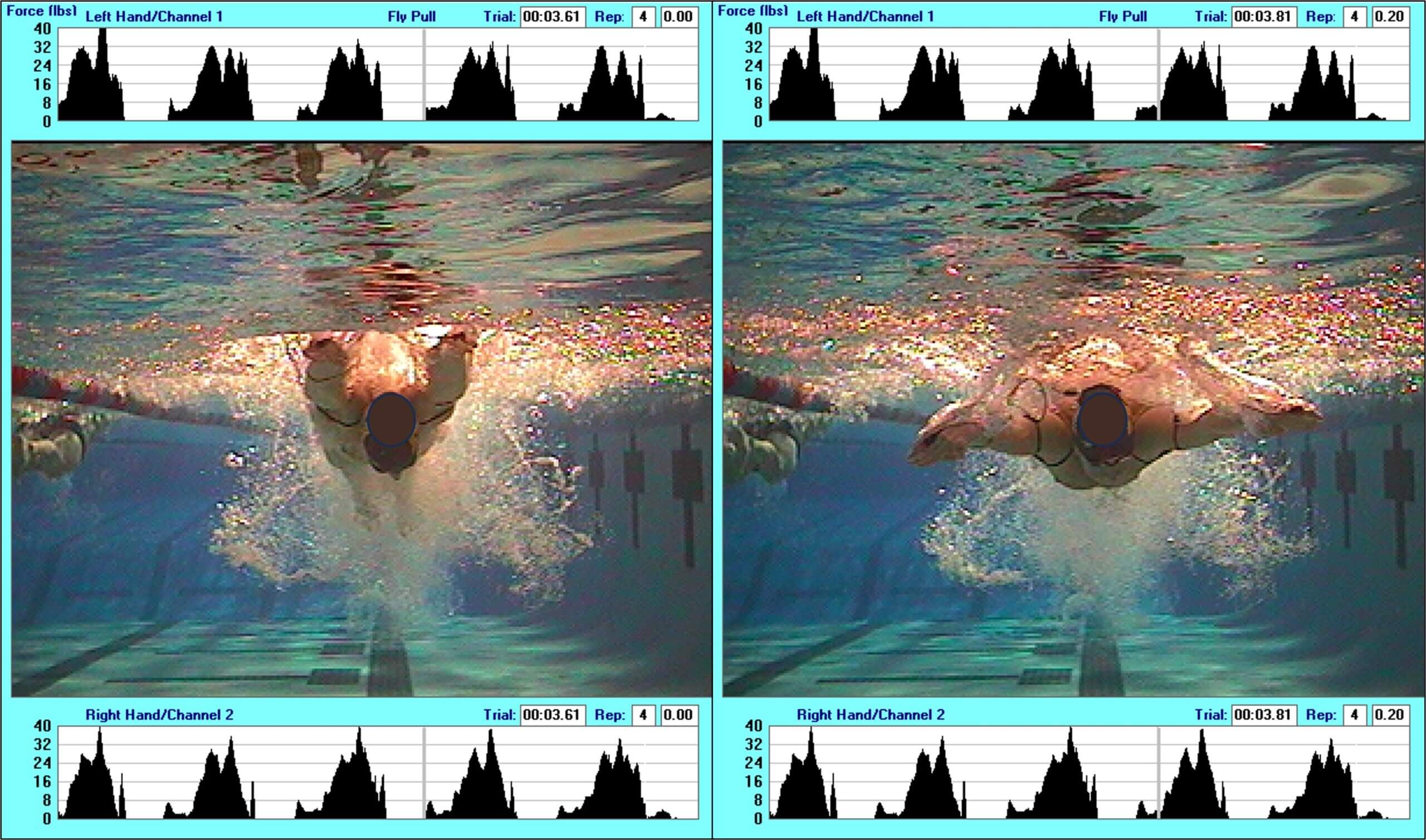

Aquanex Underwater Video Analysis System
$1,975.00
Description
Aquanex Underwater Video Camera Set-up
Aquanex Camera Specifications
| Image Device | SONY 1/3″ Ultra High Resolution HQ1 Ex View HAD CCD DSP | Scanning System | 2:1 Interlace | Scanning Frequency | NTSC |
|
H: 15.734 (KHz) V: 59.94 (Hz)PAL H: 15.635 (KHz) |
V: 50 (Hz) | Effective Pixels | NTSC |
| 768(H) x 494(V) | Horizontal Resolution | Color |
| 580 TV Lines(BW: True D&N) | 600 TV Lines | Electronic Shutter | NTSC |
|
1/60 ~ 1/50,000sec Auto PAL 1/50 ~ 1/100,000sec Auto |
|
| S/N Ratio | More than 50dB (AGC Off) |
| Environment – Water | Waterproof (IP68) – camera is assembled in a vacuum to further eliminate condensation inside the housing caused by heat generated during service cycles. |
| Environment – Vibration | Vibration proof – internals potted in silicone during manufacturing |
| Gain Control | Auto, 4 dB~30 dB |
| Backlight Compensation | Automatic |
| White Balance | Automatic (AWB) |
| Sensitivity | 0.1 Lux @ F 2.0 (30 IRE / AGC OFF) |
| Gamma Correction | ?=0.45 |
| Sync System | Internal |
| Video Output | Composite 1 |
[Vp-?] 75(?) unbalanced | Power | +12 VDC regulated |
| min: +9 VDC | max: +20 VDC | Current | 130 mA @ 12VDC regulated | MTBF | 80,000 hours | Dimensions | 21mm x 72mm | Weight | 1.6 oz / 45.3 grams | Lens Options | Standard: 8mm |
| Options: 6mm |
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 12 × 12 × 12 cm |
